Lab Investigation 4 - How could you make more of this dye?

Using spectroscopy to determine solution concentration

Guiding Question

How could you make more of this dye?

Introduction

A solution is a homogeneous mixture of two or more substances. Simple solutions consist of one solvent and one or more solutes. The solvent is the major liquid component of the mixture in solutions that contain one or more liquids. The most common solutions are aqueous solutions, in which water is the solvent. The concentration of a solute is the ratio of the amount of solute to the amount of solution or solvent. One of the most common ways to report concentration is in units of molarity. Molarity is defined as the number of moles of solute in one liter of solution. It has units of moles/liter (mol/L) and is given the symbol M. For example, if 1.5 moles of sodium chloride is dissolved in enough water to make 1.0 liter of solution, the concentration of sodium chloride is 1.5 M, or 1.5 mol NaCl/L of solution. This would be spoken as "1.5 molar." In order to accurately make solutions of known molarities, we must accurately determine the number of moles of the solute and the volume of the solution. Spectroscopy uses the interaction of chemical molecules with light to characterize a substance. This characterization depends to some extent on part of electromagnetic spectrum utilized. For example, food dyes absorb visible light at characteristic wavelengths known as their analytical wavelengths. The magnitude of the absorption is directly related to the solution concentration. You will use the absorption of visible light to determine concentration and to identify different dyes. If the concentration of a solution is unknown, the concentration can be measured by determining the amount of light it absorbs (its absorbance, A) at a particular wavelength (λ), using a spectrophotometer. Absorbance and concentration, c, are directly related by Beer's Law.

( 1 )

A = ε l c

where ε is the "molar absorptivity" (a constant unique to that solute at that wavelength) and l is the path length, or distance the light travels through the solution. There are two standard ways to make solutions of a desired concentration. First, if the solute is a solid, the appropriate amount of solid may be weighed out and then dissolved in enough solvent to make the desired amount of solution. The second common way to make a solution is to dilute a stock solution with additional solvent. The relationship between the concentrations and volumes of the concentrated and diluted solutions is given below.

( 2 )

C_iV_i = C_fV_f

where C_i and V_i are the concentration and volume of the initial (concentrated) solution and C_f and V_f are the concentration and volume of the final (diluted) solution. In Week I of this investigation you will prepare a Beer's Law calibration curve for your assigned dye. In Week II you will use the calibration plots generated by the class as well as spectroscopy to identify the components of the mixture and determine the concentration of each component.

The Problem

Your research team has been asked to prepare more of certain color dye solution. Unfortunately you were not told the composition or the concentrations of the components in the dye solution.

Materials available for use

UV-Vis Spectrophotometer
Spectronic 20D spectrophotometers
10 mL Graduated Cylinders
50 mL Beakers

Safety Precautions

Caution:
Wear goggles at all times.

Spec-20

Getting Started

•
Determine the analytical wavelength for the primary dye assigned to your table (red, blue or yellow).
•
Prepare a Beer's Law calibration curve for the primary dye.
•
Obtain a practice solution of the same dye that was used to prepare the calibration curve and determine the practice solution's concentration. Verify your result with the instructor.
•
Obtain your unknown dye solution (orange, green or purple).

Interactive Poster Session

Once your group has completed your work, prepare a whiteboard that you can use to share and justify your ideas. See the handout provided for details on this process.

Report

Once you have completed your research, you will need to prepare an investigation report that consists of three sections. Your report should answer these questions in 2 pages or less. This report must be typed and any diagrams, figures, or tables should be embedded into the document. Generally, you need one page for the first two sections and the second page for third section.

Section 1: What concept were you investigating? Relate this concept to the guiding question. You should describe and discuss the relationship between absorptivity and concentration.
Section 2: How did you go about your work and why did you conduct your investigation in this way?
Section 3: What is your argument? Remember the question is: HOW can you make more of this dye? You need to justify the components as well as the concentrations.
This third section is where you not only present your data, but use the values you obtain as evidence in your reasoning. Statements like, "see data table for values" are not acceptable!

Spectroscopy Background

Begin by viewing the online video "Spectronic 20." In this video background information on the theory and use of a spectrophotometer is provided including how to calibrate a spectrophotometer, generate a Beer's Law plot and use it to determine the concentration of an unknown. There are two principal ways in which the spectrophotometer displays data. The %T is a linear scale in which 100%T means that the sample is absorbing none of the light passing through it to 0%T in which all of the light is being absorbed (0% is making it through the sample). The Spectronic 20D most accurately measures light in the percent transmission mode. While %T is easily measured, the absorbance is a more useful value. The conversion between %T and absorbance is a simple one.

( 3 )

A = 2.000 − log(%T sample)

We relate absorbance of the sample to concentration by using the Beer-Lambert law (also known as Beer's law). The Beer-Lambert law states that the absorbance of a sample depends on the product of the concentration of the sample (c, the Molarity of the sample) by the path-length (l, the distance the light travels through the cuvette in cm) by the molar absorptivity (ε, which is a correction factor taking into account the sensitivity of the sample to the wavelength chosen).

( 4 )

A = ε l c

If we use the same cuvette for all the studies and study the same system at the same wavelength, l and ε are constant values. Therefore, absorbance is directly related to concentration and a linear relationship is observed. Once a Beer's Law plot (calibration curve) is generated for a substance using known concentrations, unknown sample concentrations can be determined by measuring the sample's absorbance and comparing to the calibration curve. See Figure 1.

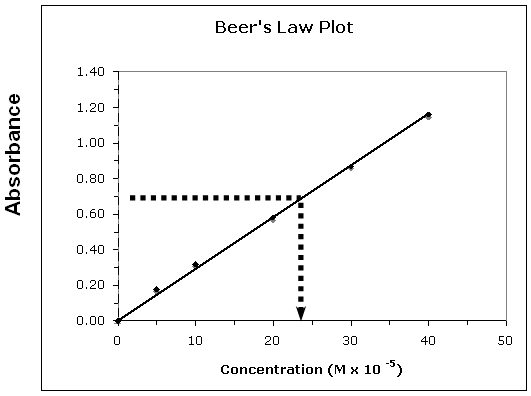

Figure 1: Beer's Law Plot

For example, if the absorbance was measured as 0.65, then the concentration for this particular substance, based upon its calibration curve, is 22 × 10^–5 M or 2.2 × 10^–4 M. It is not always this straight forward to find the concentration by reading off of the graph. More often we use the equation for a straight line, y = mx + b, where m is the slope and b is the y-intercept.

•
In this case m = 0.030 and b = 0.
•
Using these values the equation becomes: y = 0.03x + 0.
•
Substituting the absorbance value: 0.65 = 0.030x; x = 21.6 × 10^–5 M or 2.2 × 10^–4 M.

Preparing a Beer's Law Plot

Obtain two cuvettes for the Spectronic 20D. Fill one cuvette (sample) about 3/4 full with a diluted dye solution, and the second cuvette with distilled/deionized water (reference/blank). This reference/blank is usually the solvent by itself or a solution of all the components other than the specific solute under study and will be used to set the spectrophotometer to 100% Transmittance.

Set the Spectronic 20D to the appropriate analytical wavelength for the dye to be measured. Set the output to % Transmittance.

With no cuvette in the sample holder and the sample lid closed, use the front left knob to set the readout to 0%T.

Insert the blank into the sample well making sure the marking on the cuvette is lined up with the notch on the sample well. Use the front right knob to adjust the readout to 100%T. Make sure to only handle the cuvette at the rim (mouth) and not in the path of the light. Finger grease and other materials will absorb light and throw off your results. Clean the outside of the cuvettes with KimWipe tissue.

Remove the blank and insert the sample cuvette with solution D, record the %T. Remove the sample cuvette and discard the dye into a waste beaker.

NOTE: The spectrophotometer must be calibrated to 100% and 0% before every measurement because the spectrophotometer's accuracy varies with time, current fluctuations and temperature changes. This is why you need to keep your reference cuvette in a safe place to re-calibrate the machine often. Repeat measurement procedure using solutions A, B & C.

Convert %T to Absorbance using Equation 3. Use Graphical Analysis (or another spreadsheet program) to plot Absorbance versus concentration (Beer's Law Plot).

Perform least-square analysis (linear regression) to obtain calibration curve. The closer the correlation coefficient (R²) is to 1, the more linear the data. Look at your graph. If there is an obvious outlier, you may want to repeat that measurement.

Practice: Determining unknown concentration of dye

Obtain a practice solution of the same FD&C dye that was used to prepare the calibration curve.

Follow same calibration procedure to set 0%T and 100%T; then measure %T of unknown concentration.

Convert %T of unknown to Absorbance; then use the calibration curve to determine the practice solution's concentration. Verify your result with the instructor.
