How To Use MarvinView Features

Loading Molecules into MarvinView

Marvin can open molecule files saved in any of the supported formats for viewing. You can also take advantage of the Cut/Copy/Paste and Drag & Drop Functionality of Marvin to move a molecule from another chemical drawing application into MarvinView.

Saving Molecules

MarvinView allows you to save an image of the molecule in the Viewer. You can select from JPEG, PNG, PPM, POVRay, and SVG file types.
Because MarvinView is designed for viewing and not editing, you cannot save into molecule format files from MarvinView. If you would like to edit and save the molecule, you should launch a MarvinSketch window.

Printing Molecules

You can print the molecule using the Print item in either the File Menu or the Pop-up Menu.
The Print dialog box contains two sets of options: first, you choose the structures to print: all molecules, all visible molecules in the window or the selected molecule. Second, you may choose print (send to printer), print to pdf file or see the print preview.

Editing Molecules

MarvinView is intended to be used mainly to display molecules. However, there is a limited set of functionality available to edit the molecule while you view it. To make major changes to the molecule, it can be opened in either a MarvinSketch window or a Source window. In either case, the alterations made can be imported back to the Viewer.

Editing Options in MarvinView

Marvin allows you to Clean your molecule in either 2D or 3D. This will recalculate the coordinates of the atoms and bonds to the most appropriate location, based on the type of cleaning you select. You can set cleaning options via the Edit > Clean submenu or from the Pop-up Menu.
You can toggle the display of rings as aromatic using the Edit > Bonds submenu.
Using the Misc submenu from the Edit Menu or from the Pop-up Menu, you can toggle the display of options such as Atomic Symbols, Map Numbers, and E/Z steroconfiguration labels.

Editing in MarvinSketch

MarvinView allows you to launch a MarvinSketch window for editing the current molecule. By selecting, Edit > Structure, the molecule will be opened in MarvinSketch. While you are editing the molecule in the sketcher, you will be unable to use the viewer. When you close the sketcher, you will be able to use the viewer again and all changes you have made in the sketcher will appear in the viewer.

Editing Source

Choosing Source from the Edit menu (in the Menubar or Pop-up Menu) opens the Edit Source window. The The Edit Source window opens the file for the current molecule as text. You can view and edit the molecule file in any of the supported formats (SMILES, molfile, XYZ, etc).
You can alter a molecule by directly editing its source in the Edit Source Window. You can view and edit the source in any of the supported file formats. To change format, simply select the desired one from the Format Menu. To reload the molecule described by the text in this window into the MarvinSketch canvas (including any changes you may have made), select File > Import. This will close the Edit Source Window.

Structure Display Options

There is a wide range of functions related to the display of the molecules. These settings can be found in the View menu and the Preferences dialog. Additionally, you can move, rotate, and zoom in/out on the structure.

Molecule Format

You can set the display format for the molecule and screen resolution using the View > Display submenu. Available molecule formats are Wireframe, Wireframe with Knobs, Sticks, Ball and Stick, and Spacefill. You can set the resolution to low or high via the Quality submenu.

Colors

The View >Colors submenu allows you to specify the color scheme of the molecules. The available options are:

Monochrome
CPK
Shapely - based on RasMol's shapely color scheme for nucleic and amino acids
Group - based on PDB residue numbers
Atom Set

Implicit/Explicit Hydrogens

Marvin has a number of options for the display of implicit and explicit hydrogens. Because Marvin is chemically intelligent, it will automatically add hydrogens as necessary within the structure. Generally, these will be implicit and displayed based on the options set in the View menu.

To view all hydrogens explicitly, displayed as atoms with bonds to neighbors, chose Edit > H-Atoms > Add. The Edit > H-Atoms > Remove will return to the previous display mode.

To view implicit hydrogens by symbol, use the View > Hydrogens > Implicit menu group. This option is disabled in Spacefill and Ball & Stick display modes.

Error Highlighting

Marvin can not automatically correct all valence errors or any reaction errors. Instead, these errors are highlighted and you may make the appropriate corrections yourself. This option can be enabled and disabled through the the Edit > Preferences box.

Saving Display Options

Many of the display settings in Marvin are saved and reloaded the next time you start the program. Background color, molecule color scheme, and hydrogen visibility can be set from the View menu and will saved automatically when you exit the program. Other options, including look & feel, error highlighting, and object visibility can be set using the Preferences dialog from the Edit menu.

Manipulating the Molecule

You can translate, rotate, or resize the molecule on the canvas with a simple mouse drag. The View Menu and Pop-up Menu both contain a Transform submenu that allows you set the type of motion to apply to the molecule.
By Selecting Translate or Drag, dragging the mouse across the canvas will result in a same displacement of the molecule.
Selecting Zoom allows you to resize the molecule. Dragging the mouse upward will zoom out, dragging downward will zoom in.
Selecting Rotate in 2D allows you to rotate the molecule in 2D. The center of the molecule becomes the center of rotation and the molecule will rotate around this point in the direction of the mouse drag.
Selecting Rotate in 3D allows you to rotate the molecule in 3D around a point at the 3D center of the molecule.
If you select the Zoom/Rotate option and drag the mouse on the canvas, you can zoom the content of the canvas and/or rotate it in 2D.

The View Menu and Pop-up Menu also contain the choice Animation, which allows you to start and stop an automatic 3D rotation of the molecule.

How to Work with Multipage Molecular Document

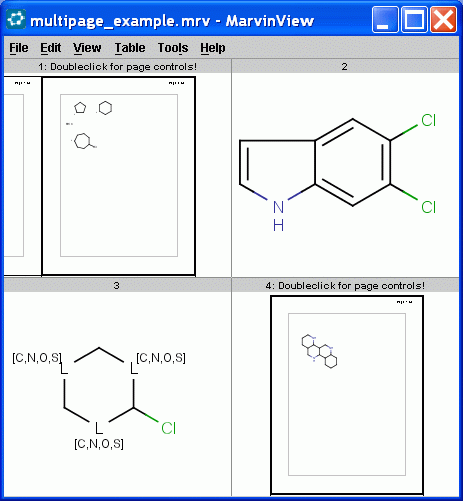

Multipage molecular documents help to work with large drawings by dividing them into pages. To use the navigation tools of multipage molecular document doubleclick on the choosen cell.

multipage view1

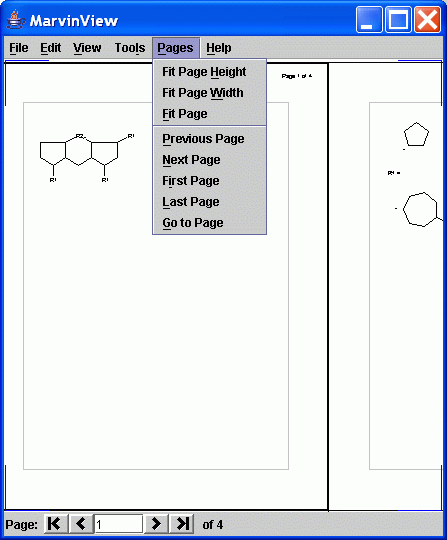

A new window will open and the following controls will automatically appear on the window's interface:

Pages menu on the menubar
Navigation statusbar under the canvas
Frame of pages, margin, title and page numbers on the canvas

multipage View2

The statusbar contains information about the current page number in a textfield and the number of all pages on a label. It also contains a collection of buttons to aid your quick navigation in the document. You can go the the first, previous, next, and last page using them. Alternatively you can go directly to a specific page by entering a number in the text field and pressing enter.

Statusbar Elements
First page button	Clicking on the First page button allows you to go to the first page of multipage molecular document.
Previous page button	Clicking on the Previous page button allows you to go to the previous page of multipage molecular document.
Current page field	The Current page textfield shows you the number of current page and allows you to go to a specific page of multipage molecular document by entering a number in the text field and pressing enter.
Next page button	Clicking on the button allows you to go to the next page of multipage molecular document.
Last page button	Clicking on the Last page button allows you to go to the last page of multipage molecular document.
All pages label	The All pages label shows you the total number of pages in multipage molecular document.

Statusbar Elements

First page button

Clicking on the First page button allows you to go to the first page of multipage molecular document.

Previous page button

Clicking on the Previous page button allows you to go to the previous page of multipage molecular document.

Current page field

The Current page textfield shows you the number of current page and allows you to go to a specific page of multipage molecular document by entering a number in the text field and pressing enter.

Next page button

Clicking on the button allows you to go to the next page of multipage molecular document.

Last page button

Clicking on the Last page button allows you to go to the last page of multipage molecular document.

All pages label

The All pages label shows you the total number of pages in multipage molecular document.

All the navigation possibilities: go to first, previous, next, last, specific pages are available from the Pages menu too with some automatic page zooming functions. Pages > Fit page height adjusts the height of the current page to the height of the canvas. Pages > Fit page width adjusts the width of the current page to the width of the canvas. Pages > Fit page adjusts the current page so that the whole current page will be placed centralized within the canvas.
