Lab 8 - Titration Curves

Purpose

To determine the equivalence points of two titrations from plots of pH versus mL of titrant added.

Goals

Introduction

A titration is an analytical procedure in which a reaction is run under carefully controlled conditions. The stoichiometric volume of one reactant of known concentration, the titrant, that is required to react with another reactant of unknown concentration, the analyte, is measured. The concentration of the analyte is determined from the concentration and volume of titrant and the stoichiometry of the reaction between them. The experimental setup is shown in Figure 1. A buret, which contains the titrant, is calibrated so the volume of solution that it delivers can be determined with high accuracy and precision. Titrant is added to the analyte until the stoichiometric volume of titrant has been added. This is called the equivalence point, at which the volume of titrant delivered by the buret is read. Usually, the volume readings are estimated to the nearest 0.01 mL. The delivery of the titrant is adjusted with the stopcock on the buret. With practice, one can dispense fractions of a drop of titrant and control the procedure well enough that replicated titrations agree within 0.10 mL.
Figure 1

Figure 1: Titration Setup

Often, the equivalence point is determined visually as a color change of an indicator. The indicator, a substance that changes color near the equivalence point, is added to the analyte solution. Since the color change is near but not exactly at the equivalence point, the point at which the color change occurs is called the endpoint. Indicators are chosen so the endpoint is very close to the equivalence point. It is important to keep a titration well mixed, so the titrant and analyte can contact each other and react rapidly. Either manual swirling of the flask or mechanical stirring can be used. You will use mechanical stirring in this experiment to ensure complete mixing of the solutions. In this experiment, you will compare the predicted equivalence point to the experimentally determined equivalence point of two titrations. The first will be a monoprotic acid, potassium hydrogen phthalate (KHP), titrated with sodium hydroxide (NaOH) and the second will be a disodium salt, sodium carbonate (Na2CO3), titrated with hydrochloric acid (HCl). In the first, you will observe only one equivalence point according to the following reaction where P refers to the phthalate ion (C8H4O42–).
( 1 )
HP−(aq) + OH−(aq) → P2−(aq) + H2O(l)
In the second, two distinct equivalence points will be observed as two protons are added stepwise to the carbonate anion (CO32–) according to the following reactions.
( 2 )
CO32−(aq) + H3O+(aq) → HCO3−(aq) + H2O(l)
( 3 )
HCO3−(aq) + H3O+(aq) → H2CO3(aq) + H2O(l)
The pH will be recorded for the analyte solution as increasing amounts of titrant are added. The plot of pH (y-axis) vs. volume of titrant added (x-axis) is called a titration curve.
Figure 2

Figure 2: Predicted titration curve of 0.1 M sodium acetate titrated with 0.20 M hydrogen chloride

Although indicators will be used in each of the titrations, they are simply for visual assistance. The pH will begin to change rapidly as the equivalence points are approached. Thus, the equivalence points can be detected simply by monitoring the pH of the analyte solution. Also, the equivalence point of the titration can be determined from the titration curve. It is the volume of titrant where the slope of the titration curve is the greatest. You will be asked to compare the endpoints predicted by the indicators to the equivalence points determined from the titration curves. You will also compare the predicted pH for various amounts of titrant added in each titration to the experimentally determined pH's. One of these points is the midpoint. This is where one half of the equivalence volume has been added. It is special because at this volume of titrant added, exactly half of the analyte has been converted into its conjugate pair. At this solution composition, the Henderson-Hasselbalch equation predicts that the pH will be equal to the pKa of the acid species of the conjugate pair. Thus, you will also be able to determine the pKa's of the analytes from the titration curves. These will be equal to the pH of the analyte solution at one half the equivalence volume of titrant added. You will compare the pKa values for both phthalic acid and carbonic acid found in reference tables to those determined from your titration curves. Another point where the calculated pH will be compared to the measured pH is the first equivalence point of the diprotic titration curve. At this point, the amphoteric intermediate species is the only species present. In the case of the carbonate (CO32–) titration, the intermediate species is hydrogen carbonate or bicarbonate (HCO3–). Because this species can act as both an acid and a base, both equilibria must be considered.
( 4 )
HCO3−(aq) + H2O(l) → CO32−(aq) + H3O(aq)
( 5 )
HCO3−(aq) + H2O(l) → H2CO3(aq) + OH−(aq)

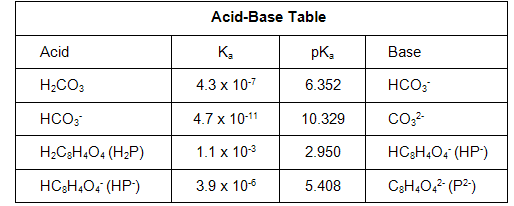

To mathematically solve this system rigorously, it would involve solving five equations and five unknowns simultaneously! However with a few assumptions, the result is quite simple. At the first equivalence point of a diprotic titration curve, the pH is the average of the pKa's for that diprotic acid.
( 6 )
pH =
1
2
(pKa1 + pKa2)
Use this equation for any solution containing only the intermediate form of a diprotic acid. For example, a solution of KHP, which you begin with in Part B. Phthalic acid is H2P and HP– is the intermediate form. Remember this when you are doing your prelab calculations! As a reminder on concentration units: molarity is defined as the number of moles of solute in a liter of solution. This is numerically equal to the number of millimoles of solute in a milliliter of solution. It is often convenient to use this second definition of molarity in titrations and other work where small quantities are involved. Note that the volume measurements in titrations are usually reported to four significant figures, so the concentrations are usually reported to four significant figures as well. Watch this in your work.

Equipment

  • 1 MicroLab interface
  • 1 MicroLab pH measurement instruction sheet
  • 1 pH electrode in pH 7.00 buffer
  • 2 30 mL beakers
  • 2 50 mL beakers
  • 1 250 mL beaker
  • 1 100 mL graduated cylinder
  • 1 20.00 mL volumetric pipet
  • 1 pipet bulb
  • 1 magnetic stir plate
  • 1 magnetic stir bar
  • 1 25 mL buret
  • 1 ring stand
  • 1 clamp
  • 1 buret clamp
  • 1 250 mL beaker for electrode rinsings
  • 1 deionized water squirt bottle
  • 1 box of Kimwipes
  • 1 ruler

Reagents

  • ~25 mL 0.20 M potassium hydrogen phthalate (KHP)
  • ~30 mL 0.20 M sodium hydroxide (NaOH)
  • 3 drops phenolphthalein solution
  • ~25 mL 0.10 M sodium carbonate (Na2CO3)
  • ~30 mL 0.20 M hydrochloric acid (HCl)
  • 3 drops methyl orange solution
  • ~15 mL pH 4.00 buffer
  • ~15 mL pH 7.00 buffer
  • ~15 mL pH 10.00 buffer
  • ~200 mL deionized water

Safety

Potassium hydrogen phthalate is listed as an irritant. Sodium carbonate is listed as both toxic and an irritant. However, the concentrations of these materials are quite low. If you spill any of these chemicals on skin or clothing, flush the area immediately with water. HCl and NaOH are corrosive. They can attack the skin and cause permanent damage to the eyes. If either solution splashes into your eyes, use the eyewash immediately. Hold your eyes open and flush with water. If contact with skin or clothing occurs, flush the affected area with water. Have your lab partner notify your instructor about the spill.

Waste Disposal

All solutions can be flushed down the sink with plenty of water.

Prior to Class

Please read the following sections of the Introductory Material: Please review the following videos:

Lab Procedure

Please print the worksheet for this lab. You will need this sheet to record your data.

PDF file

 In this experiment, you will be using pH electrodes connected to the MicroLab interface. pH electrodes have a thin glass bulb at the tip. They break easily and are costly to replace. Be careful not to shove the electrode into the bottom of a beaker or drop the electrode. There is a protective guard around the tip, which should remain in place at all times. The guard will not protect against careless treatment. Please use extreme care when using this equipment. Best results in using the electrodes are obtained if:

Part A: Calibrating the MicroLab pH Electrode

1
Open the MicroLab program.
2
Make sure the pH electrode is plugged into the interface.
3
Calibrate the pH electrode using the MicroLab instructions provided in the lab. The calibration standards for the pH electrode will be a pH = 4.00 (red) buffer solution, a pH = 7.00 (yellow) buffer solution, and a pH = 10.00 (blue) buffer solution. Use about 15 mL of each in 30 mL beakers.
4
After the calibration is complete, continue with the MicroLab instructions provided. The program will be configured to accept a volume of titrant, read from the buret, for each pH measurement.
5
For each pH reading, you will be prompted for a keyboard entry; enter the total volume of titrant as read from the buret. Make sure the electrode is immersed in the solution and allow for a few seconds equilibration.

Part B: Titration of KHP with NaOH

1
Using a clean, dry 50 mL beaker, obtain about 25 mL of 0.20 M potassium hydrogen phthalate (KHP) solution. Record the exact concentration of the KHP.
2
Condition a 20.00 mL volumetric pipet with KHP solution as shown in the Pipeting Techniques video under Instructional Videos and as described in the Volumetric Glassware section of the Introductory Material in this lab manual.
3
Pipet 20.00 mL of the potassium hydrogen phthalate (KHP) solution into a 250 mL beaker, and add 100 mL of deionized water (graduated cylinder) and 3 drops of phenolphthalein indicator.
4
Obtain about 30 mL of 0.20 M NaOH solution in a clean, dry 50 mL beaker. Record the exact concentration of NaOH.
5
Condition the 25.0 mL buret with NaOH solution as shown in the Cleaning and Conditioning a Buret video and as described in the Volumetric Glassware section of the Introductory Material in this lab manual.
6
Fill the buret with NaOH and carefully clamp it with the buret clamp to the ring stand.
7
Carefully slide the stir bar into the 250 mL beaker while tilted to avoid splashing or damage to the beaker. Position the stir plate under the 250 mL beaker and begin stirring slowly.
8
Carefully position the pH electrode in the 250 mL breaker until about 1/2 inch of the tip is in the solution. Clamp to the ring stand with the clamp provided. Be sure that the stir bar will not strike the pH electrode. If necessary, add more water from a graduated cylinder. See Figure 3 for the complete setup.
Figure 3

Figure 3: Experimental Setup

9
Position the buret so that the tip of the buret is just inside the beaker. Refer to Figure 3.
10
Take an initial pH reading by entering the initial buret reading in the MicroLab software window and hitting return. You should also record all of your data just in case something goes wrong with the computer. Remember to read the buret to the nearest 0.01 mL. Reading a buret to this accuracy is tricky; the last significant figure is expected to be an estimate.
11
Add the titrant in 2 mL increments from the buret, stir about 15 seconds. Then read the exact volume on the buret, enter this value into the MicroLab software and take a pH reading. Remember to record your measurements. Please be sure to record the pH at 10.00, 15.00, 20.00 and 22.00 mL titrant.
12
When the pH begins to change more rapidly (or when you are within 2 mL of the predicted equivalence point), the increments of titrant should be changed to 0.5 mL. Note the pH range over which the indicator changes color.
13
Return to 2 mL increments of titrant as the changes in pH decrease beyond the equivalence point. Do not stop the titration until you have added approximately 5 mL of titrant beyond the equivalence point.
14
When you are finished with your titration, stop the MicroLab data collection program. Carefully remove the pH electrode from the solution, rinse it off and place it in the pH 7 buffer until you are ready to use it in Part C.
15
Drain the remaining titrant into the analyte beaker. Rinse all remaining solutions down the drain with plenty of water.
16
Rinse and dry all of the glassware for use in Part C. Simply rinse the buret and pipet a few times with deionized water. It is not necessary to dry them since you will be conditioning them before use in Part C.
17
Use the MicroLab software to generate a graph. Ensure this plot has a title, axis labels and units where appropriate. Show this plot to your TA for manual grading of your work.
18
Copy the pH values from your prelab assignment and pH values from your KHP titration curve into your inlab assignment.

Part C: Titration of Na2CO3 with HCl

1
Rinse the 20.00 mL volumetric pipet from Part B with deionized water a few times to remove any remaining KHP solution.
2
Using a clean, dry 50 mL beaker, obtain about 25 mL of 0.10 M sodium carbonate (Na2CO3) solution. Record the exact concentration of the Na2CO3.
3
Condition the 20.00 mL volumetric pipet with Na2CO3 solution as shown in the Pipeting Techniques video under Instructional Videos and as described in the Volumetric Glassware section of the Introductory Material in this lab manual.
4
Pipet 20.00 mL of the sodium carbonate (Na2CO3) solution into a 250 mL beaker, and add 100 mL of deionized water (graduated cylinder) and 3 drops of methyl orange indicator.
5
Obtain about 30 mL of 0.20 M HCl solution in a clean, dry 50 mL beaker. Record the exact concentration of HCl.
6
Condition the 25.0 mL buret with HCl solution as shown in the Cleaning and Conditioning a Buret video and as described in the Volumetric Glassware section of the Introductory Material in this lab manual.
7
Fill the buret with HCl and carefully clamp it with the buret clamp to the ring stand.
8
Carefully slide the stir bar into the 250 mL beaker while tilted to avoid splashing or damage to the beaker. Position the stir plate under the 250 mL beaker and begin stirring slowly.
9
Carefully position the pH electrode in the 250 mL beaker until about 1/2 inch of the tip is in the solution. Clamp to the ring stand with the clamp provided. Be sure that the stir bar will not strike the pH electrode. If necessary, add more water from a graduated cylinder. See Figure 3 for the complete setup.
10
Position the buret so that the tip of the buret is just inside the beaker. Refer to Figure 3.
11
Take an initial pH reading by entering the initial buret reading in the MicroLab software window and hitting return. You should also record all of your data just in case something goes wrong with the computer.
12
Add the titrant in 2 mL increments from the buret, stir about 15 seconds. Then read the exact volume on the buret, enter this value into the MicroLab software and take a pH reading. Remember to record your measurements. Please be sure to record the pH at 5.00, 10.00, 15.00, 20.00 and 22.00 mL of titrant.
13
When the pH begins to change more rapidly (or when you are within 2 mL of the predicted first equivalence point), the increments of titrant should be changed to 0.5 mL.
14
Return to 2 mL increments of titrant as the changes in pH decrease beyond the first equivalence point.
15
When the pH begins to change more rapidly (or when you are within 2 mL of the predicted second equivalence point), the increments of titrant should be changed to 0.5 mL. Note the pH range over which the indicator changes color in the observations column.
16
Return to 2 mL increments of titrant as the changes in pH decrease beyond the second equivalence point. Do not stop the titration until you have added approximately 5 mL of titrant beyond the second equivalence point.
17
When you are finished with your titration, stop the MicroLab data collection program. Carefully remove the pH electrode from the solution, rinse it off and place it in the pH 7 buffer as you found it at the beginning of the lab period.
18
Drain the remaining titrant into the analyte beaker. Rinse all remaining solutions down the drain with plenty of water.
19
Rinse and dry all of the glassware and return it to the setup area. Simply rinse the buret and pipet a few times with deionized water. It is not necessary to manually dry them. Simply clamp them upside down in the buret clamp with the stopcock of the buret open so they will dry on their own. Please refer to the Cleaning a Buret video under Instructional Videos for more details.
20
Use the MicroLab software to generate a graph. Ensure this plot has a title, axis labels, and units where appropriate. Show this plot to your TA for manual grading of your work.
21
When you are finished, close MicroLab.
22
Complete the Data Collection section of the lab manual with pH values from your prelab assignment and pH values from your Na2CO3 titration curve.
23
Before leaving, enter your results in the in-lab assignment. If all results are scored as correct, log out. If not all results are correct, try to find the error or consult with your lab instructor. When all results are correct, note them and log out of WebAssign. The in-lab assignment must be completed by the end of the lab period. If additional time is required, please consult with your lab instructor.
