AC Circuits
Topics and Files
E&M Topic
- LRC circuit and alternating current
DataStudio File
- 81 AC Circuit.ds

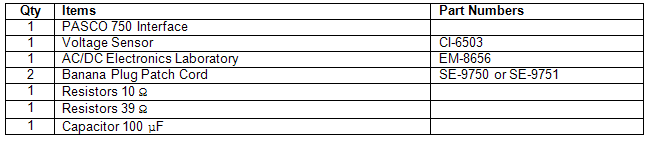

Equipment List
Introduction
The purpose of this activity is to study AC circuits with a resistor, a capacitor, and inductor. You will be able to do that by examining the current through the circuit as a function of the frequency of the applied voltage. Determine what happens to the resistance and the current when we change the parameters of voltage and frequency. Use the 'OUTPUT' feature of the PASCO 750 Interface to apply voltage to the circuit. Use the voltage sensor and DataStudio to measure the voltage across the resistor in the circuit as the frequency of the voltage is changed. Also, investigate the phase relationship between the applied voltage and the resistor voltage as you vary the frequency.Background
An AC circuit consists of circuit elements and a power source that provides alternating voltage Δv. This time-varying voltage from the source is described by( 1 )
Δv = ΔVmax sin ωt
ΔVmax
is the maximum output voltage of the source, or the voltage amplitude.
In resistors, if ΔVmax
is the emf supplied by the generator, the Kirchhoff's loop rule gives
( 2 )
Δv − iR · R = 0 | ||||
where iR =
| ||||
where Imax =
| ||||
and ω = 2 · π · f = 2 ·
|
( 3 )
ΔvR = iR · R = Imax · R · sin(ωt).
( 4 )
Δv −
= 0.
q |
C |
ΔVmax · sin(ωt)
for Δv and rearranging gives:
( 5 )
q = C · ΔVmax · sin(ωt).
( 6 )
iC =
= ω · C · ΔVmax · cos(ωt).
dq |
dt |
( 7 )
Δv − L ·
= 0.
diL |
dt |
ΔVmax · sin(ωt)
for Δv and rearranging gives:
( 8 )
Δv = L ·
= ΔVmax · sin(ωt).
diL |
dt |
( 9 )
diL =
· sin(ωt) · dt.
ΔVmax |
L |
( 10 )
iL =
· sin
ωt −
.
ΔVmax |
ωL |
π |
2 |
ΔvL
across the inductor are out of the phase by π |
2 |
