Status Bar of MarvinSketch

The Status Bar appears at the bottom of the main frame, and unlike toolbars, it cannot be customized or moved.

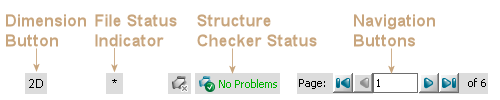

The Status Bar consists of 3 parts:
  1. Dimension Button
    Switches between 2D and 3D modes. If the current structure is represented in 3D, then switching to 2D mode performs a 2D cleaning upon confirmation.
  2. File Status Indicator
    This sign appears dynamically if there are unsaved modifications on the current structure, and disappears upon a Save command.
  3. Structure Checker Status
    By default it is disabled as seen on the first image. To enable manual checking double-click on it. Right-click enables automatic checking. The status bar displays different images when there is no problem, if checking is in progress or if problems were found.
  4. Navigation Buttons
    The Navigation Buttons appearing on the Status Bar dynamically using multipage molecular documents provide a quick way to navigate between pages.
    For information about how to enable multipage molecular documents please visit this link.
