ChemAxon SMILES Abbreviated Groups

Codename: abbrevgroup

File format for abbreviated groups in Marvin

Abbreviated groups are stored in a TAB-delimited text file called default.abbrevgroup. The basic format is:

    Ac	CC=O	2
    AcAc	CC(=O)CC(=O)	5
    Acet	CC=O	2
    Ade	NC1=C2N=CNC2=NC=N1	6	1

Please make sure the words are separated by TAB characters not by spaces.

In these lines the very first word is the abbreviation, the second is the SMILES string representing the molecule fragment depicted by the abbreviation. These are followed by one or two numbers that are the number(s) of link nodes (atoms) in the SMILES string. In the first line using the Ac abbreviation the second carbon is the link when the group is connected to an other molecule. If there is no number following the the SMILES string the abbreviated group can not be linked to other atoms. Furtheremore the maximal number of link nodes are two.

Usually the bond points towards the middle of the abbreviation but when the string contains atom symbols, probably we want to make it point to the symbol of the bonding atom. Furthermore it is desirable to flip the abbreviation when the group is in the opposite side:

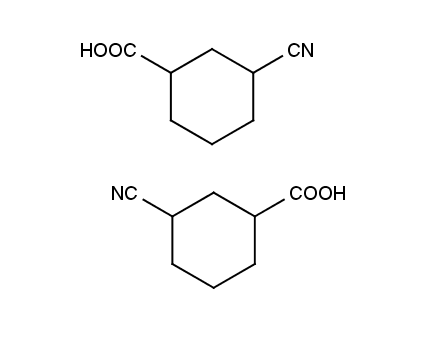

Flipped abbreviated groups CN and COOH

To achieve the flipping effect one have to provide the alternative name of the abbreviated group that will be printed on the left side of the molecule:

	CN	C#N	1	leftName=NC
	CO2Et	CCOC=O	4	leftName=EtO2C
	CO2H	OC=O	2	leftName=HO2C
	COOH	OC=O	2	leftName=HOOC
	COOiAm	CC(C)CCOC=O	7	leftName=iAmOOC

If the abbreviation contains numbers, those will be treated as subscripts:

	C10H21	CCCCCCCCCC	1	leftName=H21C10
	CBr3	BrC(Br)Br	2	leftName=Br3C

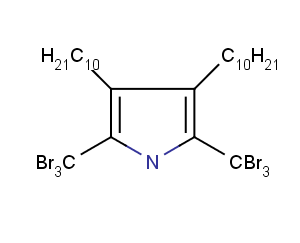

Numbers as subscripts in abbreviated names

Additionally there can be groups where it is good to have flipping abbreviations but the string represents the form that is used on the left side. For these groups (for example AcO, MeO) the rightName specifier can be used:

	BnNH	NCC1=CC=CC=C1	1	rightName=HNBn
	BnO	OCC1=CC=CC=C1	1	rightName=OBn
	BnO2C	O=COCC1=CC=CC=C1	2	rightName=CO2Bn
	BnOOC	O=COCC1=CC=CC=C1	2	rightName=COOBn
Abbreviations on the right.

If you do not want to flip a abbreviation but want to be sure that the bond points to an atom symbol and not to the middle of the string, you still can define the center specifier:

	c-C10H19	C1CCCCCCCCC1	1	center=AUTO
	c-C11H21	C1CCCCCCCCCC1	1	center=AUTO
	c-C12H23	C1CCCCCCCCCCC1	1	center=AUTO
Bonds pointing to an atom

This option allows to point to the very first character in the abbreviated group string that is the same as the atom symbol of the binding atom. In later releases this option will make it possible to fine-tune the position of the bond to point to any of the characters.
