In many situations, an object is in contact with a surface, such as a tabletop. Because of the contact, there is a force acting on the object. The present section discusses only one component of this force, the component that acts perpendicular to the surface. The next section discusses the component that acts parallel to the surface. The perpendicular component is called the normal force.

Figure 4.13 shows a block resting on a horizontal table and identifies the two forces that act on the block, the weight and the normal force . To understand how an inanimate object, such as a tabletop, can exert a normal force, think about what happens when you sit on a mattress. Your weight causes the springs in the mattress to compress. As a result, the compressed springs exert an upward force (the normal force) on you. In a similar manner, the weight of the block causes invisible “atomic springs” in the surface of the table to compress, thus producing a normal force on the block.

Newton's third law plays an important role in connection with the normal force. In Figure 4.13, for instance, the block exerts a force on the table by pressing down on it. Consistent with the third law, the table exerts an oppositely directed force of equal magnitude on the block. This reaction force is the normal force. The magnitude of the normal force indicates how hard the two objects press against each other.

If an object is resting on a horizontal surface and there are no vertically acting forces except the object's weight and the normal force, the magnitudes of these two forces are equal; that is, . This is the situation in Figure 4.13. The weight must be balanced by the normal force for the object to remain at rest on the table. If the magnitudes of these forces were not equal, there would be a net force acting on the block, and the block would accelerate either upward or downward, in accord with Newton's second law.

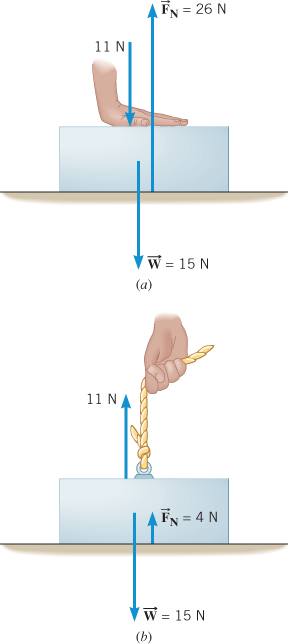

If other forces in addition to and act in the vertical direction, the magnitudes of the normal force and the weight are no longer equal. In Figure 4.14a, for instance, a box whose weight is 15 N is being pushed downward against a table. The pushing force has a magnitude of 11 N. Thus, the total downward force exerted on the box is 26 N, and this must be balanced by the upward-acting normal force if the box is to remain at rest. In this situation, then, the normal force is 26 N, which is considerably larger than the weight of the box.

Figure 4.14b illustrates a different situation. Here, the box is being pulled upward by a rope that applies a force of 11 N. The net force acting on the box due to its weight and the rope is only 4 N, downward. To balance this force, the normal force needs to be only 4 N. It is not hard to imagine what would happen if the force applied by the rope were increased to 15 N—exactly equal to the weight of the box. In this situation, the normal force would become zero. In fact, the table could be removed, since the block would be supported entirely by the rope. The situations in Figure 4.14 are consistent with the idea that the magnitude of the normal force indicates how hard two objects press against each other. Clearly, the box and the table press against each other harder in part a of the picture than in part b.

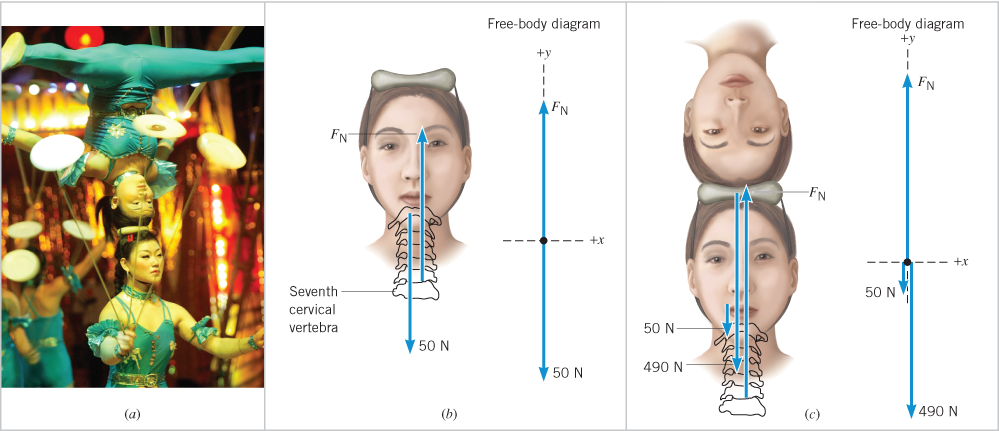

Like the box and the table in Figure 4.14, various parts of the human body press against one another and exert normal forces. Example 8 illustrates the remarkable ability of the human skeleton to withstand a wide range of normal forces.

Usually, the weight of an object can be determined with the aid of a scale. However, even though a scale is working properly, there are situations in which it does not give the correct weight. In such situations, the reading on the scale gives only the “apparent” weight, rather than the gravitational force or “true” weight. The apparent weight is the force that the object exerts on the scale with which it is in contact.

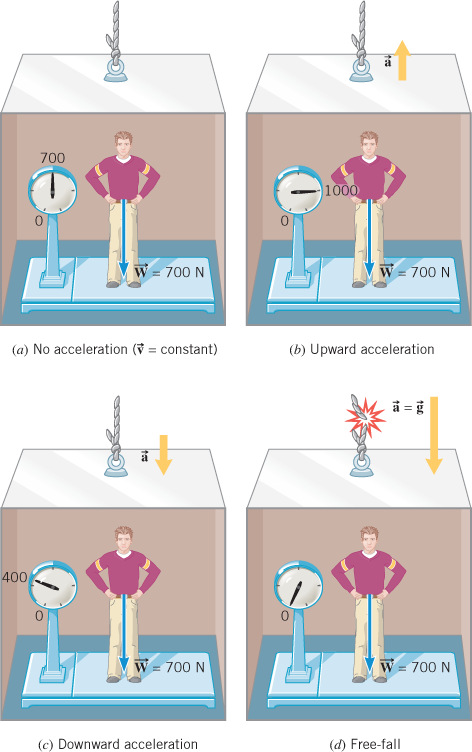

To see the discrepancies that can arise between true weight and apparent weight, consider the scale in the elevator in Figure 4.16. The reasons for the discrepancies will be explained shortly. A person whose true weight is 700 N steps on the scale. If the elevator is at rest or moving with a constant velocity (either upward or downward), the scale registers the true weight, as Figure 4.16a illustrates.

If the elevator is accelerating, the apparent weight and the true weight are not equal. When the elevator accelerates upward, the apparent weight is greater than the true weight, as Figure 4.16b shows. Conversely, if the elevator accelerates downward, as in part c, the apparent weight is less than the true weight. In fact, if the elevator falls freely, so its acceleration is equal to the acceleration due to gravity, the apparent weight becomes zero, as part d indicates. In a situation such as this, where the apparent weight is zero, the person is said to be “weightless.” The apparent weight, then, does not equal the true weight if the scale and the person on it are accelerating.

The discrepancies between true weight and apparent weight can be understood with the aid of Newton's second law. Figure 4.17 shows a free-body diagram of the person in the elevator. The two forces that act on him are the true weight and the normal force exerted by the platform of the scale. Applying Newton's second law in the vertical direction gives where a is the acceleration of the elevator and person. In this result, the symbol g stands for the magnitude of the acceleration due to gravity and can never be a negative quantity. However, the acceleration a may be either positive or negative, depending on whether the elevator is accelerating upward or downward . Solving for the normal force shows that In Equation 4.6, is the magnitude of the normal force exerted on the person by the scale. But in accord with Newton's third law, is also the magnitude of the downward force that the person exerts on the scale—namely, the apparent weight.

Equation 4.6 contains all the features shown in Figure 4.16. If the elevator is not accelerating, , and the apparent weight equals the true weight. If the elevator accelerates upward, a is positive, and the equation shows that the apparent weight is greater than the true weight. If the elevator accelerates downward, a is negative, and the apparent weight is less than the true weight. If the elevator falls freely, , and the apparent weight is zero. The apparent weight is zero because when both the person and the scale fall freely, they cannot push against one another. In this text, when the weight is given, it is assumed to be the true weight, unless stated otherwise.
